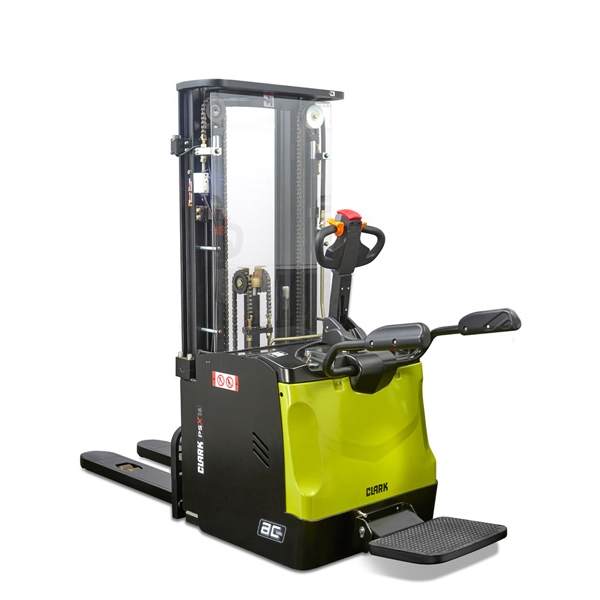

The PSX16 electric stacker truck from CLARK offers everything you need for a demanding industrial application. The stacker truck is equipped with electric servo steering, side battery removal and battery capacities of up to 500 Ah. In addition, the proportional hydraulic system ensures a gentle and quiet lifting or lowering of loads.
LOAD CAPACITY
max. 1600 kg
LIFT HEIGHT
max. 5800 mm
TRAVEL SPEED
max. 8 km/h
ENGINE OUTPUT
1.6 kW
BATTERY
max. 500 Ah/5hr
STACKING WIDTH
min. 2546 mm
Proportional hydraulics system
- Sensitive lifting and lowering
- Safe handling of goods
Upright damping
- Soft transition between upright rails with each lifting and lowering action
High residual capacity and easy handling
- Up to 5800 mm lift height
- Large residual capacities due to 4-wheel layout
- Symmetrical steering due to centered tiller position
Comfort and ergonomics
- Power steering as a standard feature
- Automatic deceleration when cornering proportional to the steering angle
- Reduces centrifugal power affecting the driver
Foldable driver’s platform
- Improved safety and ergonomics
- Better panoramic view
- Low tread height of the platform of only 160 mm makes entering and exiting easy
- When the operator leaves the platform, the vehicle automatically changes into stand-by mode and can no longer be moved
Comfort and ergonomics
- Power steering as a standard feature
- Automatic deceleration when cornering proportional to the steering angle
- Reduces centrifugal power affecting the driver
Foldable driver’s platform
- Improved safety and ergonomics
- Better panoramic view
- Low tread height of the platform of only 160 mm makes entering and exiting easy
- When the operator leaves the platform, the vehicle automatically changes into stand-by mode and can no longer be moved
- Simple and fast implementation of control commands
- Automated soft deceleration and return into the neutral position when tiller is released
Automatic parking brake
- Safe operation on slopes and ramps
- Automatic release of the parking brake when driving switch is activated
