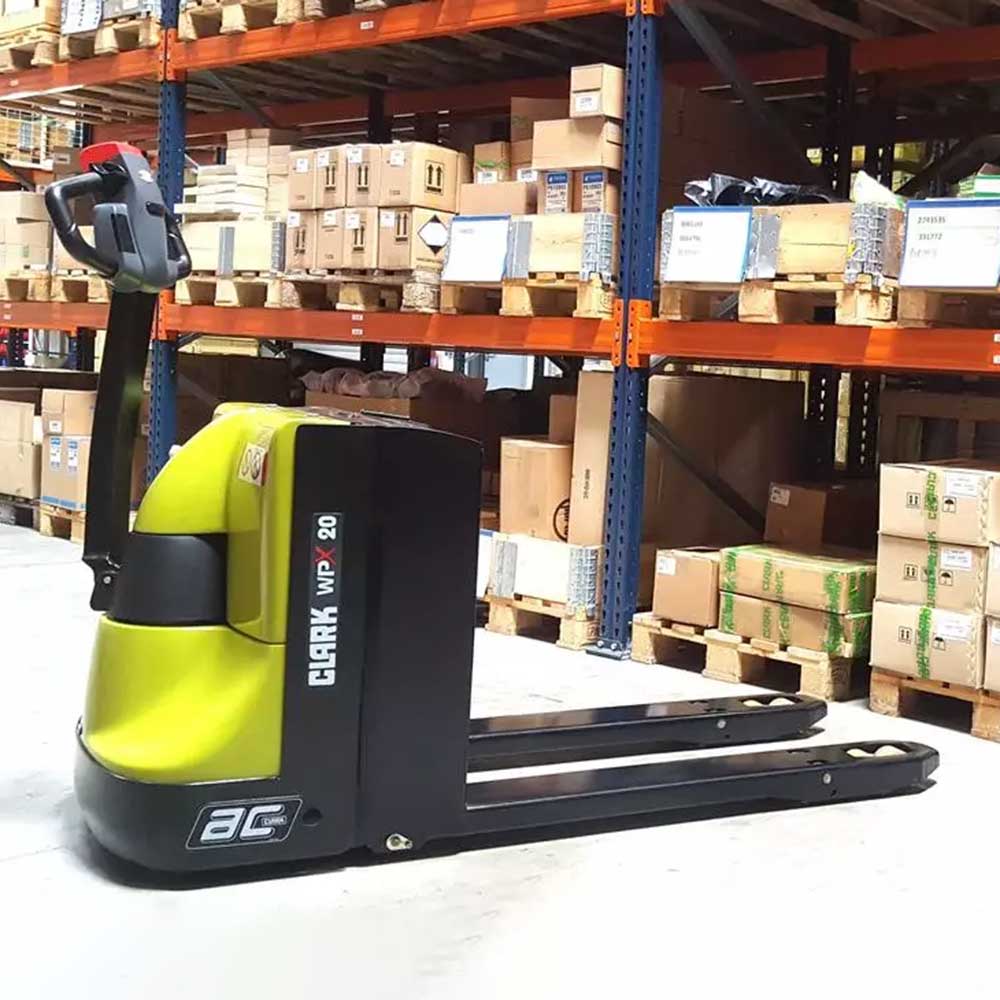

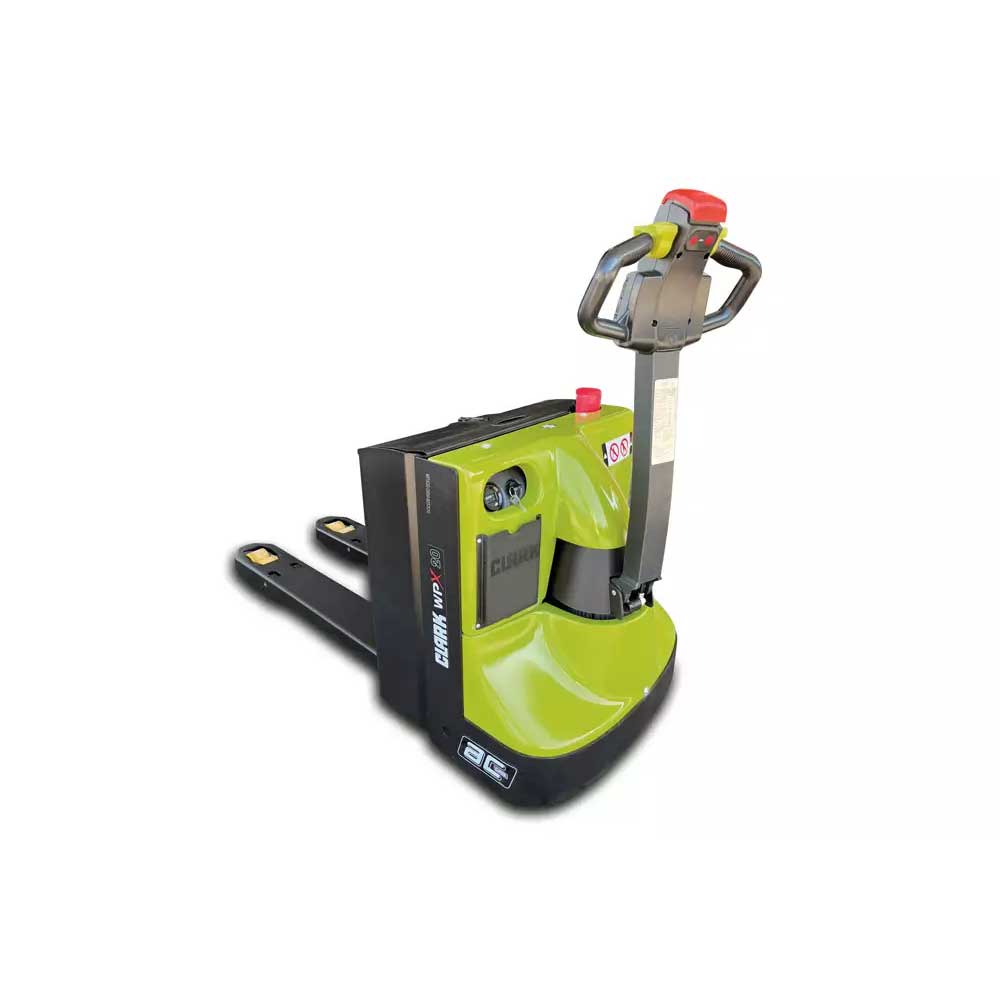

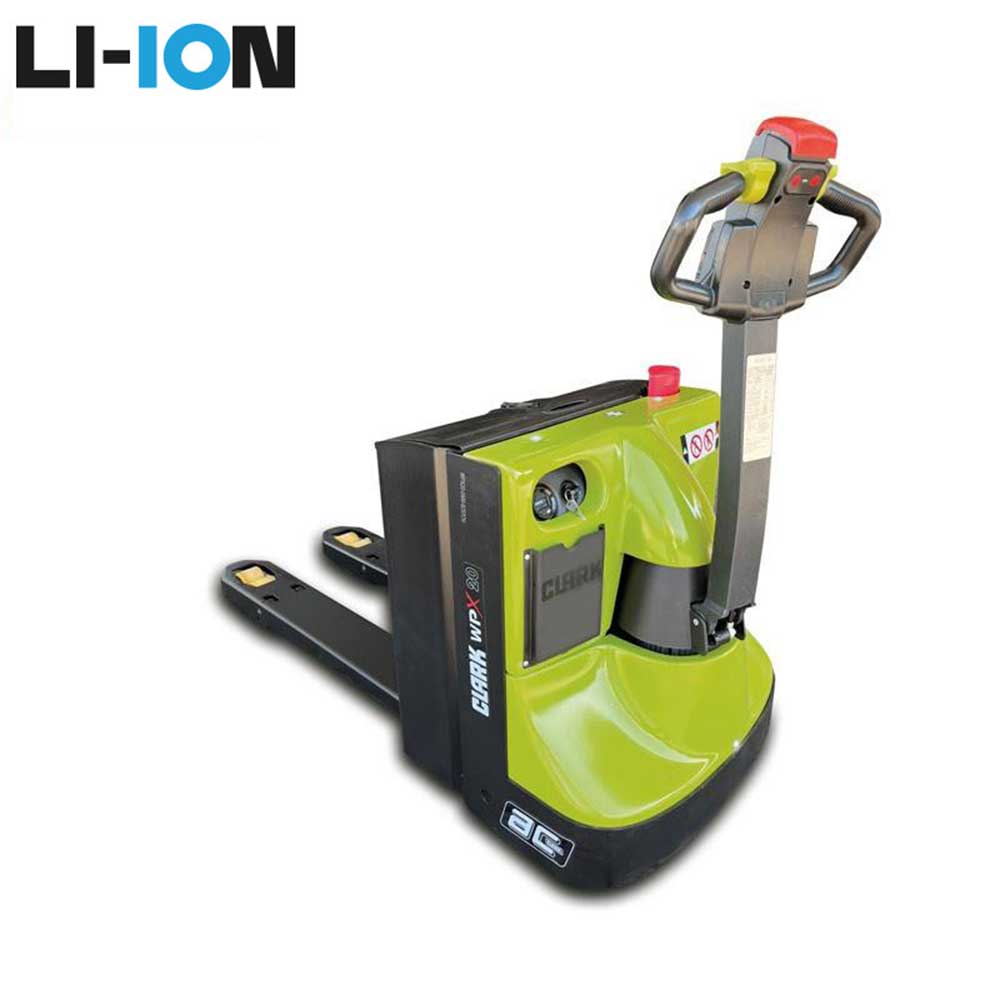

The WPX20 low lift pallet truck optimizes material flow with its AC drive technology and the CLARK SpeedControl (CSC). Due to its excellent maneuverability and easy control, the WPX20 is perfect for heavy loads up to 2,000 kg.
LOAD CAPACITY
max. 2000 kg
LIFT HEIGHT
max. 205 mm
TRAVEL SPEED
max. 6 km/h
ENGINE OUTPUT
1.1 kW
BATTERY
max. 225 Ah/5hr
STACKING WIDTH
min. 1856 mm
- Powerful and maintenance-free AC drive technology with 1.1 kW capacity
- Stops automatically on slopes and ramps
- Tiller swiveling over 180° for small turning radius
- More safety via the CLARK SpeedControl system (CSC) which automatically adjusts the maximum travel speed depending on the tiller position
- Support rollers with suspension for highest degree of stability
- Tandem load rollers as standard configuration
- Convenient integration of all driving and lifting switches in the tiller
- Battery discharge indicator in clearly visible position
Ergonomic and safe tiller
- Simple and fast implementation of control commands
- Automated soft deceleration and return into the neutral position when releasing the tiller
Automatic parking brake
- Safe operation on slopes and ramps
- Release of the automatic parking brake when driving switch is activated
- Makes it easier to maneuver, in particular when operating the vehicle in smaller spaces
- Depending on the tiller position, the maximum travel speed is adjusted automatically
- In the Speed Control mode (S), the maximum travel speed is controlled; this ensures safe and swift positioning
- If the tiller is in normal drive mode (K), maximum travel speed can be reached
All parameters can be customized as per the customer’s request.
